ADF5901 24GHz VCO/PGA

Analog Devices

Description

Data Sheet 24 GHz VCO and PGA with 2-Channel PA Output ADF5901 .
The ADF5901 is a 24 GHz Tx monolithic microwave integrated circuit (MMIC) with an on-chip, 24 GHz VCO with PGA and dual Tx channels for radar systems.

📥 Download Datasheet

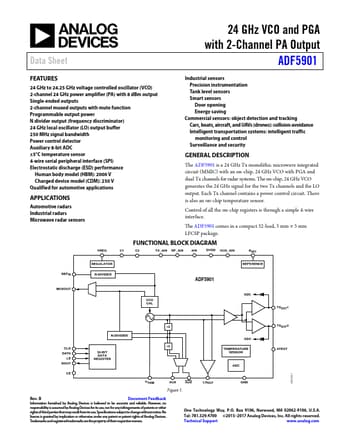

ADF5901 Datasheet Preview — Preview of ADF5901 PDF

Datasheet Specifications

Part number: ADF5901
Manufacturer: Analog Devices ↗
File Size: 408.63 KB
Datasheet: ADF5901-AnalogDevices.pdf
Description: 24GHz VCO/PGA

Features

* 24 GHz to 24.25 GHz voltage controlled oscillator (VCO) 2-channel 24 GHz power amplifier (PA) with 8 dBm output Single-ended outputs 2-channel muxed outputs with mute function Programmable output power N divider output (frequency discriminator) 24 GHz local oscillator (LO) output buffer 250 MHz sign

Applications

* APPLICATIONS Automotive radars Industrial radars Microwave radar sensors Industrial sensors Precision instrumentation Tank level sensors Smart sensors Door opening Energy saving Commercial sensors: object detection and tracking Cars, boats, aircraft, and UAVs (drones): collision avoidance Intellige
