ADF5902 Datasheet - Analog Devices

ADF5902 Multichannel FMCW Radar Transmitter

ADF5902 Features

* APPLICATIONS 24 GHz to 24.25 GHz VCO (industrial, scientific, and medical (ISM) radio band) 2-channel 24 GHz power amplifier with 8 dBm output Single-ended outputs 2-channel muxed outputs with mute function Programmable output power LO output buffer RF frequency range: 24 GHz to 24.25 GHz Power co

ADF5902-AnalogDevices.pdf

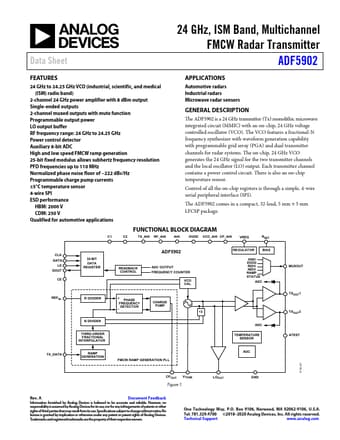

Preview of ADF5902 PDF
ADF5902 Datasheet Preview Page 2 ADF5902 Datasheet Preview Page 3

Datasheet Details

Part number:

ADF5902

Manufacturer:

Analog Devices ↗

File Size:

505.48 KB

Description:

Multichannel fmcw radar transmitter.
