ADG3233

Bypass Switch

ADG3233 Features

* Operates from 1.65 V to 3.6 V supply rails Bidirectional level translation, unidirectional signal path 8-lead SOT-23 and MSOP packages Bypass or normal operation Short circuit protection APPLICATIONS JTAG chain bypassing Daisy-chain bypassing Digital switching FUNCTIONAL BLOCK DIAGRAM VCC1 VCC2 VCC

ADG3233 General Description

The ADG32331 is a bypass switch designed on a submicron process that operates from supplies as low as 1.65 V. The device is guaranteed for operation over the supply range 1.65 V to 3.6 V. It operates from two supply voltages, allowing bidirectional level translation, that is, it translates low volta.

ADG3233 Datasheet (410.16 KB)

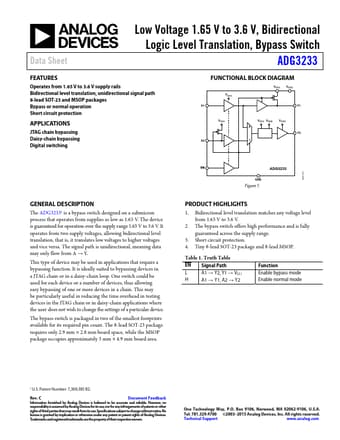

Preview of ADG3233 PDF

Datasheet Details

Part number:

ADG3233

Manufacturer:

Analog Devices ↗

File Size:

410.16 KB

Description:

Bypass switch.
