ADG901

Wideband 40 dB Isolation at 1 GHz CMOS 1.65V to 2.75V SPST Switches

ADG901 Features

* ADG901 absorptive switch ADG902 reflective switch Enables user to pass dc signals up to 0.5 V without dc blocking capacitor Operational from 0 Hz up to 4.5 GHz at

* 3 dB frequency 40 dB off isolation at 1 GHz typical 0.8 dB insertion loss at 1 GHz typical 17 dBm P1dB at 1 GHz typical Availabl

ADG901 General Description

The ADG901/ADG902 are wideband switches that use a complementary metal-oxide semiconductor (CMOS) process to provide high isolation and low insertion loss to 1 GHz. The ADG901 is an absorptive (matched) switch with 50 Ω terminated shunt legs, while the ADG902 is a reflective switch. These devices ar.

ADG901 Datasheet (701.61 KB)

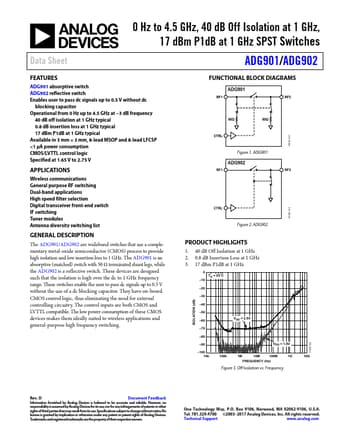

Preview of ADG901 PDF

Datasheet Details

Part number:

ADG901

Manufacturer:

Analog Devices ↗

File Size:

701.61 KB

Description:

Wideband 40 db isolation at 1 ghz cmos 1.65v to 2.75v spst switches.
