ADG936

Wideband 4 GHz 36 dB Isolation at 1 GHz CMOS 1.65V to 2.75V Dual SPDT

ADG936 Features

* Wideband switch:

* 3 dB @ 4 GHz ADG936 absorptive dual SPDT ADG936-R reflective dual SPDT High off isolation (36 dB @ 1 GHz) Low insertion loss (0.9 dB dc to 1 GHz) Single 1.65 to 2.75 V power supply CMOS/LVTTL control logic 20-lead TSSOP and 4 mm × 4 mm LFCSP package Low power consumption (1

ADG936 General Description

The ADG936/ADG936-R are wideband analog switches that comprise two independently selectable SPDT switches using a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG936 is an absorptive/matched dual SPDT with 50 Ω terminated shunt legs; the ADG936-R is a reflective dual S.

ADG936 Datasheet (297.57 KB)

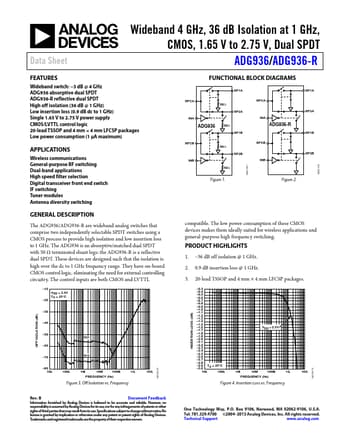

Preview of ADG936 PDF

Datasheet Details

Part number:

ADG936

Manufacturer:

Analog Devices ↗

File Size:

297.57 KB

Description:

Wideband 4 ghz 36 db isolation at 1 ghz cmos 1.65v to 2.75v dual spdt.
