ADL5230 Datasheet, Amplifier, Analog Devices

ADL5230 Features

  • Amplifier Operation from 400 MHz to 2700 MHz Gain of +13.7 dB Gain at 2140 MHz OIP3 of+42.0 dBm at 2140 MHz P1dB +25.6 dBm at 2140 MHz Noise Figure of 4.2 dB at 2140 MHz 5V power supply 104 mA Po

PDF File Details

Part number:

ADL5230

Manufacturer:

Analog Devices ↗

File Size:

313.04kb

Download:

📄 Datasheet

Description:

Pre-driver rf amplifier. The ADL5320 is a broadband, linear pre-driver RF amplifier that operates at frequencies from 400 MHz to 2700 MHz. The device can be u

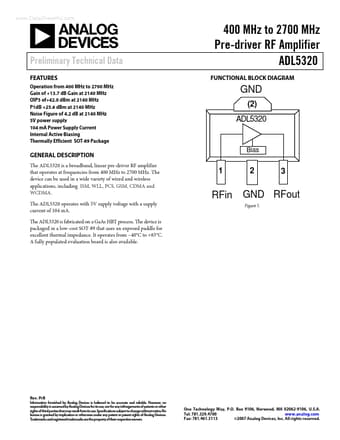

Datasheet Preview: ADL5230 📥 Download PDF (313.04kb)
Page 2 of ADL5230 Page 3 of ADL5230

ADL5230 Application

  • Applications including ISM, WLL, PCS, GSM, CDMA and WCDMA. The ADL5320 operates with 5V supply voltage with a supply current of 104 mA. The ADL5320
