ADL5201 Datasheet, Vga, Analog Devices

ADL5201 Features

  • Vga
  • 11.5 dB to +20 dB gain range 0.5 dB ± 0.1 dB step size 150 Ω differential input and output 7.5 dB noise figure at maximum gain OIP3 > 50 dBm at 200 MHz
  • 3 dB upper freq

PDF File Details

Part number:

ADL5201

Manufacturer:

Analog Devices ↗

File Size:

0.96MB

Download:

📄 Datasheet

Description:

Digitally controlled vga. The ADL5201 is a digitally controlled, variable gain, wide bandwidth amplifier that provides precise gain control, high IP3, and low

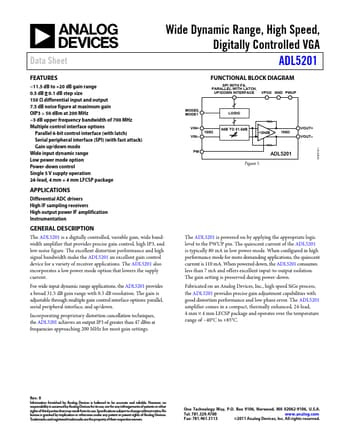

Datasheet Preview: ADL5201 📥 Download PDF (0.96MB)
Page 2 of ADL5201 Page 3 of ADL5201

ADL5201 Application

  • Applications Differential ADC drivers High IF sampling receivers High output power IF amplification Instrumentation GENERAL DESCRIPTION The ADL5201
