ADM825

Supervisory Circuits with Watchdog and Manual Reset in 5-Lead SC70 and SOT-23

ADM825 Features

* Supervisory Circuits with Watchdog and Manual Reset in 5-Lead SC70 and SOT-23 ADM823/ADM824/ADM825 FUNCTIONAL BLOCK DIAGRAM ADM823 VCC VREF VCC RESET GENERATOR Precision 2.5 V to 5 V power supply monitor 7 reset threshold options: 2.19 V to 4.63 V 140 ms (min) reset timeout Watchdog timer with 1.6

ADM825 General Description

The ADM823/ADM824/ADM825 are supervisory circuits which monitor power supply voltage levels and code execution integrity in microprocessor-based systems. As well as providing power on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout .

ADM825 Datasheet (180.32 KB)

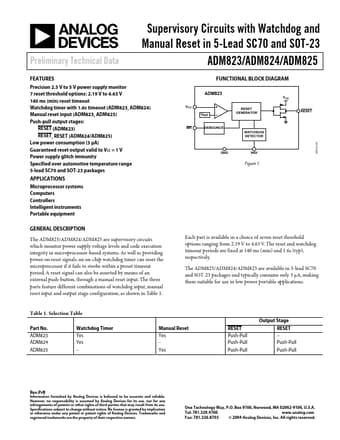

Preview of ADM825 PDF

Datasheet Details

Part number:

ADM825

Manufacturer:

Analog Devices ↗

File Size:

180.32 KB

Description:

Supervisory circuits with watchdog and manual reset in 5-lead sc70 and sot-23.
