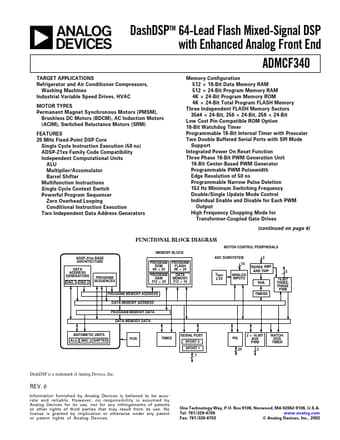

ADMCF340 DashDSPTM 64-Lead Flash Mixed-Signal DSP with Enhanced Analog Front End

64-Lead Thin Plastic Quad Flatpack (LQFP) Development Tool Kit Package Op.

a DashDSPTM 64-Lead Flash Mixed-Signal DSP with Enhanced Analog Front End ADMCF340 Memory Configuration 512 ؋ 16-Bit Data Memory RAM 512 ؋ 24-Bit Program Memory RAM 4K ؋ 24-Bit Program Memory ROM 4K ؋ 24-Bit Total Program FLASH Memory Three Independent FLASH Memory Sectors 3584 ؋ 24-Bit, 256 ؋ 24-Bit, 256 ؋ 24-Bit Low Cost Pin-Compatible ROM Option 16-Bit Watchdog Timer Programmable 16-Bit Internal Timer with Prescaler Two Double Buffered Serial Ports with SPI Mode Support Integrated Power On R.

ADMCF340 Features

* 20 MHz Fixed-Point DSP Core Single Cycle Instruction Execution (50 ns) ADSP-21xx Family Code Compatibility Independent Computational Units ALU Multiplier/Accumulator Barrel Shifter Multifunction Instructions Single Cycle Context Switch Powerful Program Sequencer Zero Overhead Looping Conditional Ins
