ADMCF341

DashDSP 28-Lead Flash Mixed-Signal DSP with Enhanced Analog Front End

ADMCF341 Features

* 20 MHz Fixed-Point DSP Core Single-Cycle Instruction Execution (50 ns) ADSP-21xx Family Code Compatibility Independent Computational Units ALU, Multiplier/Accumulator, Barrel Shifter Multifunction Instructions Single-Cycle Context Switch Powerful Program Sequencer Zero Overhead Looping Conditional I

ADMCF341 General Description

Supply Voltage (VDD) . . . . . . . . . . . . . . . . . .

*0.3 V to +7.0 V Supply Voltage (AVDD) . . . . . . . . . . . . . . . . .

*0.3 V to +7.0 V Input Voltage . . . . . . . . . . . . . . . . . . . . .

*0.3 V to VDD +0.3 V Output Voltage Swing . . . . . . . . . . . . . . <.

ADMCF341 Datasheet (1.08 MB)

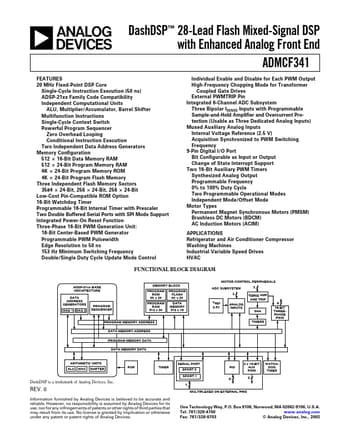

Preview of ADMCF341 PDF

Datasheet Details

Part number:

ADMCF341

Manufacturer:

Analog Devices ↗

File Size:

1.08 MB

Description:

Dashdsp 28-lead flash mixed-signal dsp with enhanced analog front end.
a DashDSP™ 28-Lead Flash Mixed-Signal DSP with Enhanced Analog Front End ADMCF341 Individual Enable and Disable for Each PWM Output High-Frequency Ch.
