ADP1109A Datasheet, Converter, Analog Devices

ADP1109A Features

  • Converter Operates at Supply Voltages 2 V to 9 V Fixed 3.3 V, 5 V, 12 V and Adjustable Output Minimum External Components Required Ground Current: 460 ␮A Oscillator Frequency: 120 kHz Logic Shutd

PDF File Details

Part number:

ADP1109A

Manufacturer:

Analog Devices ↗

File Size:

146.24kb

Download:

📄 Datasheet

Description:

Dc-to-dc converter. The ADP1109A is a versatile step-up switching regulator. The device requires only minimal external components to operate as a complet

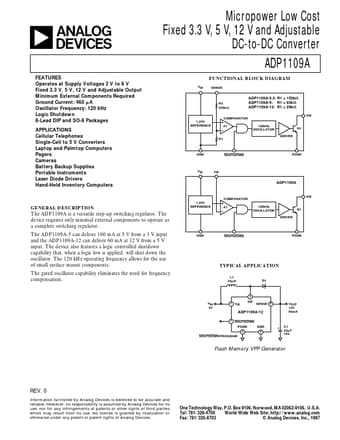

Datasheet Preview: ADP1109A 📥 Download PDF (146.24kb)
Page 2 of ADP1109A Page 3 of ADP1109A

ADP1109A Application

  • Applications Cellular Telephones Single-Cell to 5 V Converters Laptop and Palmtop Computers Pagers Cameras Battery Backup Supplies Portable Instrume
