ADP1111

Step-Up/Step-Down SW Regulator

Analog Devices

ADP1111 Features

* Operates from 2 V to 30 V Input Voltage Range 72 kHz Frequency Operation Utilizes Surface Mount Inductors Very Few External Components Required Operates in Step-Up/Step-Down or Inverting Mode Low Battery Detector User Adjustable Current Limit Internal 1 A Power Switch Fixed or Adjustable Output Volt

ADP1111 General Description

The ADP1111 is part of a family of step-up/step-down switching regulators that operates from an input voltage supply of 2 V to 12 V in step-up mode and up to 30 V in step-down mode. The ADP1111 can be programmed to operate in step-up/stepdown or inverting applications with only 3 external components.

ADP1111 Datasheet (316.94 KB)

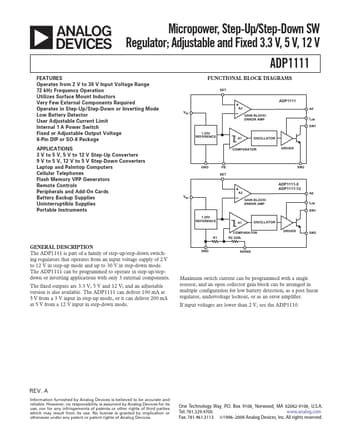

ADP1111 Datasheet Preview — Preview of ADP1111 PDF

Datasheet Details

Part number:

ADP1111

Manufacturer:

Analog Devices ↗

File Size:

316.94 KB

Description:

Step-up/step-down sw regulator.
