ADP3412

Dual MOSFET Driver with Bootstrapping

ADP3412 Features

* All-In-One Synchronous Buck Driver Bootstrapped High-Side Drive One PWM Signal Generates Both Drives Programmable Transition Delay Anticross-Conduction Protection Circuitry APPLICATIONS Multiphase Desktop CPU Supplies Mobile Computing CPU Core Power Converters Single-Supply Synchronous Buck Converte

ADP3412 General Description

The ADP3412 is a dual MOSFET driver optimized for driving two N-channel MOSFETs which are the two switches in a nonisolated synchronous buck power converter. Each of the drivers is capable of driving a 3000 pF load with a 20 ns propagation delay and a 30 ns transition time. One of the drivers can b.

ADP3412 Datasheet (135.55 KB)

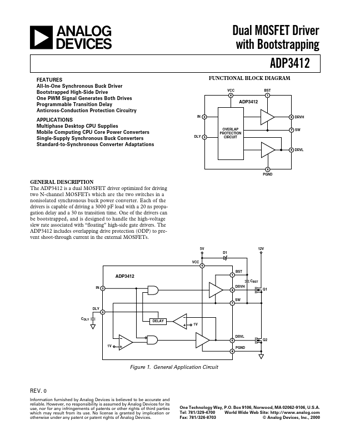

Preview of ADP3412 PDF

Datasheet Details

Part number:

ADP3412

Manufacturer:

Analog Devices ↗

File Size:

135.55 KB

Description:

Dual mosfet driver with bootstrapping.
