ADP3414

Dual Bootstrapped MOSFET Driver

ADP3414 Features

* All-In-One Synchronous Buck Driver Bootstrapped High-Side Drive One PWM Signal Generates Both Drives Anticross-Conduction Protection Circuitry Pulse-by-Pulse Disable Control IN VCC Dual Bootstrapped MOSFET Driver ADP3414 FUNCTIONAL BLOCK DIAGRAM BST DRVH OVERLAP PROTECTION CIRCUIT APPLICATIONS Mo

ADP3414 General Description

The ADP3414 is a dual MOSFET driver optimized for driving two N-channel MOSFETs which are the two switches in a nonisolated synchronous buck power converter. Each of the drivers is capable of driving a 3000 pF load with a 20 ns propagation delay and a 30 ns transition time. One of the drivers can b.

ADP3414 Datasheet (141.22 KB)

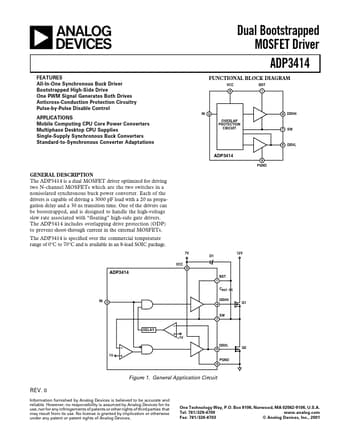

Preview of ADP3414 PDF

Datasheet Details

Part number:

ADP3414

Manufacturer:

Analog Devices ↗

File Size:

141.22 KB

Description:

Dual bootstrapped mosfet driver.
