ADV7150, ADV CMOS 220 MHz True-Color Graphics Triple 10-Bit Video RAM-DAC

ADV7150 Description

a CMOS 220 MHz True-Color Graphics Triple 10-Bit Video RAM-DAC ADV7150 @ 85 MHz 8-Bit Pseudo Color 15-Bit True Color APPLICATIONS High Resolution, Tr.
FEATURES 220 MHz, 24-Bit (30-Bit Gamma Corrected) True Color Triple 10-Bit “Gamma Correcting” D/A Converters Triple 256 ؋ 10 (256 ؋ 30) Color Palette.

ADV7150 Features

* 220 MHz, 24-Bit (30-Bit Gamma Corrected) True Color Triple 10-Bit “Gamma Correcting” D/A Converters Triple 256 ؋ 10 (256 ؋ 30) Color Palette RAM On-Chip Clock Control Circuit Palette Priority Select Registers RS-343A/RS-170 Compatible Analog Outputs TTL Compatible Digital Inputs Standard MPU l/O Int

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADV7150, ADV. Please refer to the document for exact specifications by model.

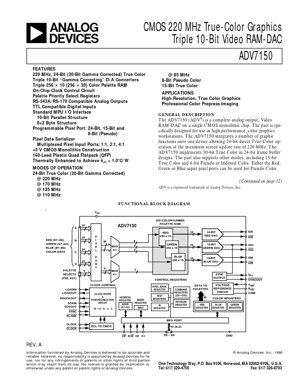

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADV7150, ADV
Manufacturer
Analog Devices ↗
File Size
447.42 KB
Datasheet
ADV-7150.pdf
Description
CMOS 220 MHz True-Color Graphics Triple 10-Bit Video RAM-DAC
Note
This datasheet PDF includes multiple part numbers: ADV7150, ADV.
Please refer to the document for exact specifications by model.
