ADV7152, ADV CMOS 220 MHz True-Color Graphics Triple 10-Bit Video RAM-DAC

ADV7152 Description

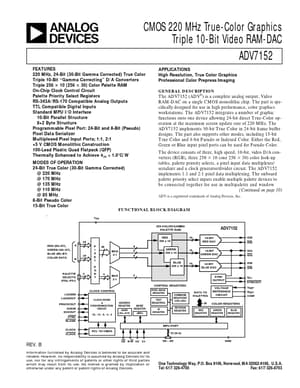

a CMOS 220 MHz True-Color Graphics Triple 10-Bit Video RAM-DAC ADV7152 APPLICATIONS High Resolution, True Color Graphics Professional Color Prepress .
FEATURES 220 MHz, 24-Bit (30-Bit Gamma Corrected) True Color Triple 10-Bit “Gamma Correcting” D/A Converters Triple 256 ؋ 10 (256 ؋ 30) Color Palette.

ADV7152 Features

* 220 MHz, 24-Bit (30-Bit Gamma Corrected) True Color Triple 10-Bit “Gamma Correcting” D/A Converters Triple 256 ؋ 10 (256 ؋ 30) Color Palette RAM On-Chip Clock Control Circuit Palette Priority Select Registers RS-343A/RS-170 Compatible Analog Outputs TTL Compatible Digital Inputs Standard MPU l/O Int

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADV7152, ADV. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADV7152, ADV
Manufacturer
Analog Devices ↗
File Size
454.03 KB
Datasheet
ADV-7152.pdf
Description
CMOS 220 MHz True-Color Graphics Triple 10-Bit Video RAM-DAC
Note
This datasheet PDF includes multiple part numbers: ADV7152, ADV.
Please refer to the document for exact specifications by model.
