ADV7181D

Multiformat SDTV/HDTV Video Decoder and RGB Graphics Digitizer

ADV7181D Features

* Four 10-bit ADCs sampling up to 75 MHz 10 analog input channels SCART fast blank support Internal antialiasing filters NTSC, PAL, and SECAM color standards supported 525p/625p component progressive scan supported 720p/1080i component HDTV supported Digitizes RGB graphics up to 1024 × 768 at 70 Hz (X

ADV7181D General Description

The ADV7181D is a high quality, single-chip, multiformat video decoder and graphics digitizer. This multiformat decoder supports the conversion of PAL, NTSC, and SECAM standards in the form of composite or S-Video into a digital ITU-R BT.656 format. The ADV7181D also supports the decoding of a compo.

ADV7181D Datasheet (498.65 KB)

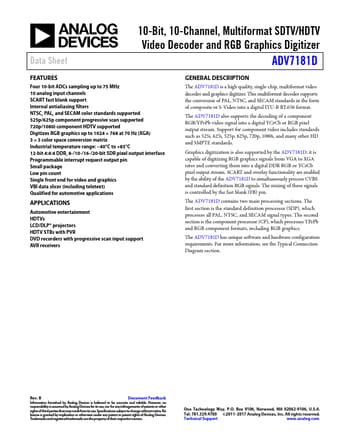

Preview of ADV7181D PDF

Datasheet Details

Part number:

ADV7181D

Manufacturer:

Analog Devices ↗

File Size:

498.65 KB

Description:

Multiformat sdtv/hdtv video decoder and rgb graphics digitizer.
