HMC-C001 - WIDEBAND LNA MODULE

Product Overview

Analog Devices

Datasheet Details

Part number	HMC-C001
Manufacturer	Analog Devices
File Size	263.95 KB
Description	WIDEBAND LNA MODULE
Datasheet	HMC-C001 Datasheet

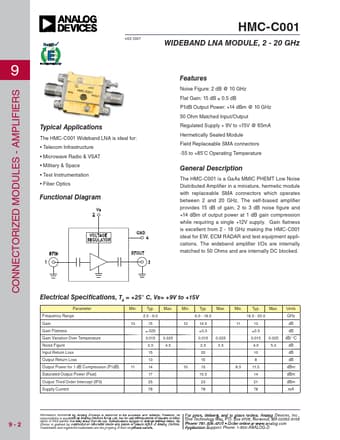

Additional preview pages of the HMC-C001 datasheet.

Product details

Description

The HMC-C001 is a GaAs MMIC PHEMT Low Noise Distributed Amplifier in a miniature, hermetic module with replaceable SMA connectors which operates between 2 and 20 GHz.

Features

Noise Figure: 2 dB @ 10 GHz Flat Gain: 15 dB ± 0.5 dB P1dB Output Power: +14 dBm @ 10 GHz 50 Ohm Matched Input/Output Regulated Supply + 9V to +15V @ 65mA Hermetically Sealed Module Field Replaceable SMA connectors -55 to +85˚C Operating Temperature General.
