HMC-C011 Datasheet, Switch, Analog Devices

HMC-C011 Features

  • Switch High Isolation: >45 dB up to 5 GHz >35 dB up to 20 GHz Low Insertion Loss: 2 dB @ 12 GHz 2.5 dB @ 16 GHz Fast Switching Non-Reflective Design Hermetically Sealed Module Field Replaceabl

PDF File Details

Part number:

HMC-C011

Manufacturer:

Analog Devices ↗

File Size:

270.54kb

Download:

📄 Datasheet

Description:

Gaas mmic spdt non-reflective switch. The HMC-C011 is a general purpose broadband high isolation non-reflective GaAs MESFET SPDT switch housed in a miniature hermetic modu

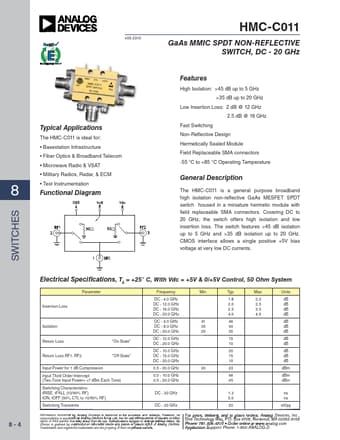

Datasheet Preview: HMC-C011 📥 Download PDF (270.54kb)
Page 2 of HMC-C011 Page 3 of HMC-C011

HMC-C011 Application

  • Applications The HMC-C011 is ideal for:
  • Basestation Infrastructure
  • Fiber Optics & Broadband Telecom
  • Microwave Radio &
