HMC-C010

ANALOG PHASE SHIFTER MODULE

HMC-C010 Features

* Wide Bandwidth: 6 - 15 GHz >600° Phase Shift Single Positive Voltage Control Hermetically Sealed Module Field Replaceable SMA Connectors -55 to +85 °C Operating Temperature Typical Applications The HMC-C010 is ideal for:

* Fiber Optics

* Military

* Test Equipment General De

HMC-C010 General Description

The HMC-C010 is an Analog Phase Shifter which is controlled via an analog control voltage from 0 to +5V. The HMC-C010 provides a continuously variable phase shift of 0 to 800 degrees at 6 GHz, and 0 to 450 degrees at 16 GHz, with consistent insertion loss versus phase shift. The phase shift is monot.

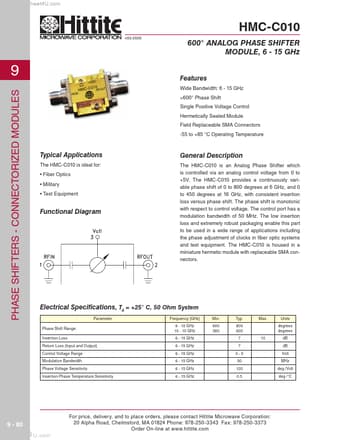

HMC-C010 Datasheet (711.97 KB)

Preview of HMC-C010 PDF

Datasheet Details

Part number:

HMC-C010

Manufacturer:

Hittite Microwave

File Size:

711.97 KB

Description:

Analog phase shifter module.
