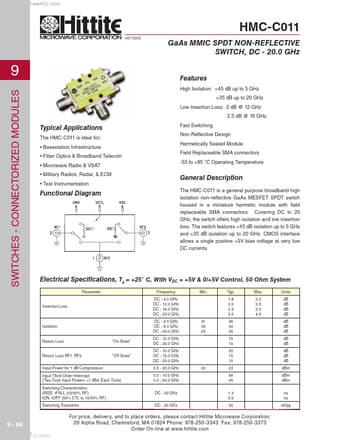

HMC-C011 Datasheet, Switch, Hittite Microwave

HMC-C011 Features

• Switch High Isolation: >45 dB up to 5 GHz >35 dB up to 20 GHz Low Insertion Loss: 2 dB @ 12 GHz 2.5 dB @ 16 GHz 9 SWITCHES - CONNECTORIZED MODULES Typical Applications The HMC-C011 is ideal

PDF File Details

Part number:

HMC-C011

Manufacturer:

Hittite Microwave

File Size:

598.09kb

Download:

📄 Datasheet

Description:

Gaas mmic spdt non-reflective switch. The HMC-C011 is a general purpose broadband high isolation non-reflective GaAs MESFET SPDT switch housed in a miniature hermetic modu

HMC-C011 Application

• Applications The HMC-C011 is ideal for:
• Basestation Infrastructure
• Fiber Optics & Broadband Telecom
• Microwave Radio &
