HMC-C013

10 WATT POWER AMPLIFIER MODULE

HMC-C013 Features

* P1dB Output Power: 10 Watts Gain: 43 dB Output IP3: +56 dBm Single Positive Supply: +12V Thermally Compensated and Protected TTL DC Power Enable Unconditionally Stable Heat Sink/Fan Accessories Available Typical Applications The HMC-C013 is ideal for:

* Cellular/PCS/3G Infrastructure

HMC-C013 General Description

The HMC-C013 is a 10 Watt Power Amplifier Module suitable for Cellular/3G repeaters, wireless data, laboratory use and ATE applications. This extremely robust PA module is DC blocked, internally regulated and over voltage protected. Thermal protection/fault circuitry automatically turns off DC power.

HMC-C013 Datasheet (973.15 KB)

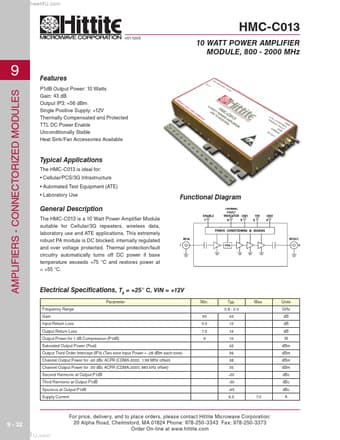

Preview of HMC-C013 PDF

Datasheet Details

Part number:

HMC-C013

Manufacturer:

Hittite Microwave

File Size:

973.15 KB

Description:

10 watt power amplifier module.
