HMC258 - GaAs MMIC SUB-HARMONICALLY PUMPED MIXER

HMC258 Description

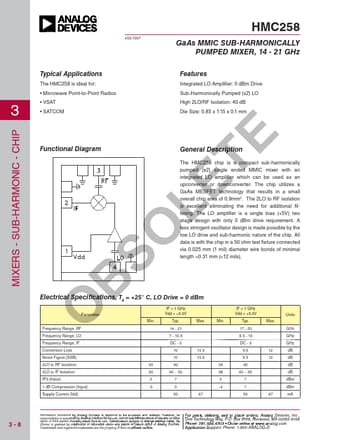

v03.1007 HMC258 GaAs MMIC SUB-HARMONICALLY PUMPED MIXER, 14 - 21 GHz Typical Applications .
The HMC258 chip is a compact sub-harmonically pumped (x2) single ended MMIC mixer with an integrated LO amplifier which can be used as an upconverter.

HMC258 Features

* The HMC258 is ideal for: Integrated LO Amplifier: 0 dBm Drive
* Microwave Point-to-Point Radios Sub-Harmonically Pumped (x2) LO
* VSAT 3
* SATCOM High 2LO/RF Isolation: 40 dB Die Size: 0.85 x 1.15 x 0.1 mm MIXERS - SUB-HARMONIC - CHIP OLETE Functional Diagram Gener
