HMC258LM3 GaAs MMIC SUB-HARMONIC SMT MIXER

The HMC258LM3 is a 14 - 20 GHz surface mount sub-harmonically pumped (x2) MMIC mixer with an integrated LO amplifier in a SMT leadless chip carrier package. The 2LO to RF isolation is an excellent 40 dB, eliminating the need for additional filtering. The LO amplifier is a single bias (+5V) two stage.

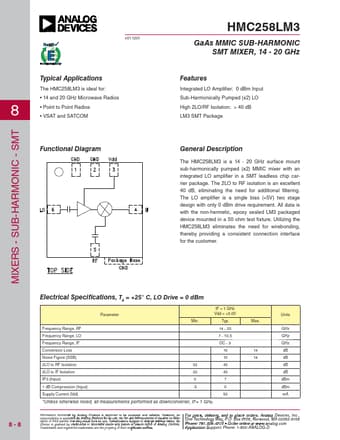

HMC258LM3 Datasheet (351.44 KB)

Preview of HMC258LM3 PDF

Datasheet Details

Part number:

HMC258LM3

Manufacturer:

Analog Devices ↗

File Size:

351.44 KB

Description:

Gaas mmic sub-harmonic smt mixer.
