HMC331 Datasheet, Mmic, Analog Devices

HMC331 Features

• Mmic Conversion Loss: 14 dB Fo, 3Fo, 4Fo Isolation: 50 dB
• LMDS, VSAT, and Point-to-Point Radios Passive: No Bias Required FREQUENCY MULTIPLIERS - PASSIVE - CHIP
• Test

PDF File Details

Part number:

HMC331

Manufacturer:

Analog Devices ↗

File Size:

588.78kb

Download:

📄 Datasheet

Description:

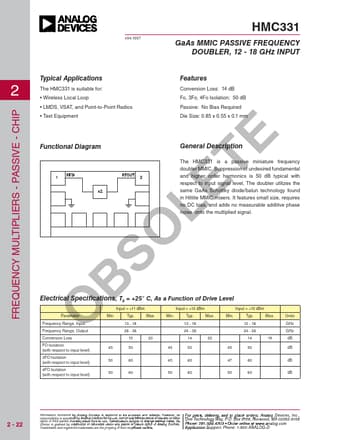

Gaas mmic. The HMC331 is a passive miniature frequency doubler MMIC. Suppression of undesired fundamental and higher order harmonics is 50 dB ty

HMC331 Application

• Applications 2 The HMC331 is suitable for:
• Wireless Local Loop Features Conversion Loss: 14 dB Fo, 3Fo, 4Fo Isolation: 50 dB
