HMC333

GaAs MMIC MIXER

HMC333 Features

* The HMC333 / HMC333E is ideal for: Integrated LO Amplifier w/ Pdiss: < 25 mW

* Wireless Local Loop Conversion Loss / Noise Figure: 8.5 dB Low LO Drive Level: 0 dBm Input IP3: +10 dBm ETE Functional Diagram Single Positive Supply: 3V to 5V General Description The HMC333 & HMC333E are

HMC333 General Description

The HMC333 & HMC333E are single balanced mixer ICs with integrated LO amplifiers. This converter IC can operate as an upconverter or downconverter between 3.0 GHz and 3.8 GHz. With the integrated LO amplifier, the mixer requires an LO drive level of only 0 dBm, and requires only 7 mA from a single p.

HMC333 Datasheet (665.00 KB)

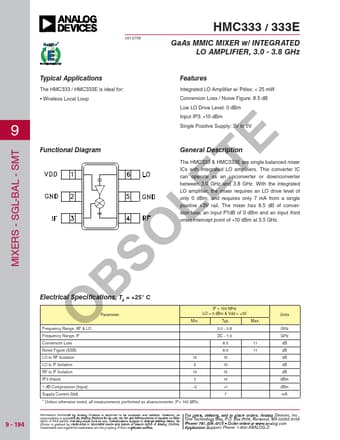

Preview of HMC333 PDF

Datasheet Details

Part number:

HMC333

Manufacturer:

Analog Devices ↗

File Size:

665.00 KB

Description:

Gaas mmic mixer.
