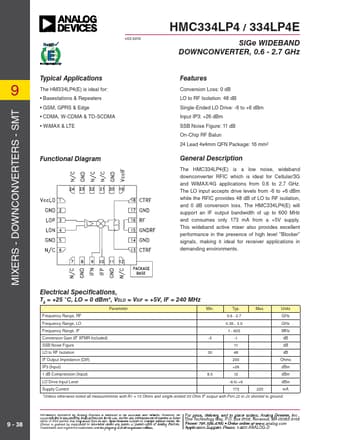

HMC334LP4E Datasheet, Downconverter, Analog Devices

HMC334LP4E Features

• Downconverter Conversion Loss: 0 dB LO to RF Isolation: 48 dB Single-Ended LO Drive: -6 to +6 dBm Input IP3: +26 dBm SSB Noise Figure: 11 dB On-Chip RF Balun 24 Lead 4x4mm QFN Package: 16 mm2 General

PDF File Details

Part number:

HMC334LP4E

Manufacturer:

Analog Devices ↗

File Size:

444.78kb

Download:

📄 Datasheet

Description:

Sige wideband downconverter. The HMC334LP4(E) is a low noise, wideband downconverter RFIC which is ideal for Cellular/3G and WiMAX/4G applications from 0.6 to 2.7

HMC334LP4E Application

• Applications 9 The HM334LP4(E) is ideal for:
• Basestations & Repeaters
• GSM, GPRS & Edge
• CDMA, W-CDMA & TD-SCDMA
