HMC703LP4E - 8GHz fractional synthesizer

Product Overview

Analog Devices

Datasheet Details

Part number	HMC703LP4E
Manufacturer	Analog Devices
File Size	2.46 MB
Description	8GHz fractional synthesizer
Datasheet	HMC703LP4E Datasheet

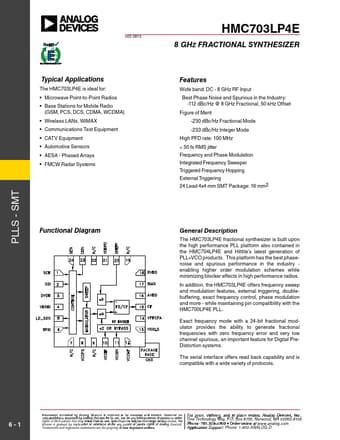

Additional preview pages of the HMC703LP4E datasheet.

Product details

Description

The HMC703LP4E fractional synthesizer is built upon the high performance PLL platform also contained in the HMC704LP4E and Hittite’s latest generation of PLL+VCO products.

Features

Wide band: DC - 8 GHz RF Input Best Phase Noise and Spurious in the Industry: -112 dBc/Hz @ 8 GHz Fractional, 50 kHz Offset Figure of Merit -230 dBc/Hz Fractional Mode -233 dBc/Hz Integer Mode High PFD rate: 100 MHz < 50 fs RMS jitter Frequency and Phase Modulation Integrated Frequency Sweeper Triggered Frequency Hopping External Triggering 24 Lead 4x4 mm SMT Package: 16 mm2 Functional Diagram General.
