HMC707LP5E - 6-Bit Digital Variable Gain Amplifier

Product Overview

Hittite Microwave Corporation

Datasheet Details

Part number	HMC707LP5E
Manufacturer	Hittite Microwave Corporation
File Size	619.70 KB
Description	6-Bit Digital Variable Gain Amplifier
Datasheet	HMC707LP5E Datasheet
Note	This datasheet PDF includes multiple part numbers: HMC707LP5E, HMC707LP5. Please refer to the document for exact specifications by model.

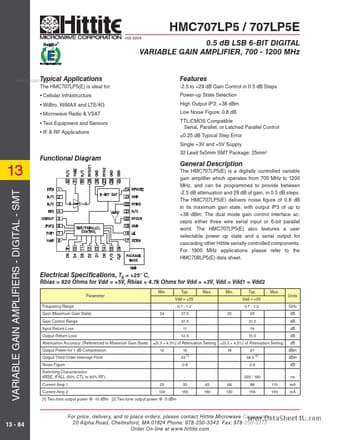

Additional preview pages of the HMC707LP5E datasheet.

Product details

Description

The HMC707LP5(E) is a digitally controlled variable gain amplifier which operates from 700 MHz to 1200 MHz, and can be programmed to provide between -2.5 dB attenuation and 29 dB of gain, in 0.5 dB steps.

Features

-2.5 to +29 dB Gain Control in 0.5 dB Steps Power-up State Selection High Output IP3: +38 dBm Low Noise Figure: 0.8 dB TTL/CMOS Compatible Serial, Parallel, or Latched Parallel Control ±0.25 dB Typical Step Error Single +3V and +5V Supply 32 Lead 5x5mm SMT Package: 25mm2 The HMC707LP5(E) is ideal for:.
Cellular Infrastructure.
WiBro, WiMAX and LTE/4G.
Microwave Radio & VSAT.
Test Equipment and Sensors.
IF & RF.
