HMC704LP4E Datasheet, Pll, Analog Devices

HMC704LP4E Features

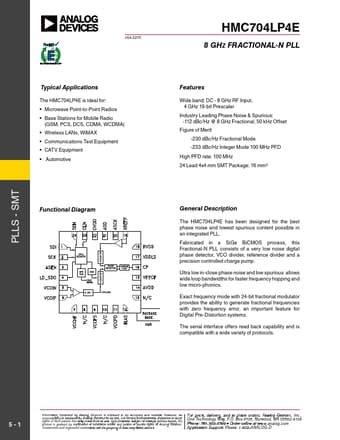

• Pll Wide band: DC - 8 GHz RF Input, 4 GHz 19-bit Prescaler Industry Leading Phase Noise & Spurious: -112 dBc/Hz @ 8 GHz Fractional, 50 kHz Offset Figure of Merit -230 dBc/Hz Fractional Mode

PDF File Details

Part number:

HMC704LP4E

Manufacturer:

Analog Devices ↗

File Size:

1.83MB

Download:

📄 Datasheet

Description:

8ghz fractional-n pll. The HMC704LP4E has been designed for the best phase noise and lowest spurious content possible in an integrated PLL. Fabricated in a

HMC704LP4E Application

• Applications The HMC704LP4E is ideal for:
• Microwave Point-to-Point Radios
• Base Stations for Mobile Radio (GSM, PCS, DCS, C
