HMC8100LP6JE

Intermediate Frequency Receiver

HMC8100LP6JE Features

* High linearity: supports modulations to 1024 QAM Rx IF range: 80 MHz to 200 MHz Rx RF range: 800 MHz to 4000 MHz Rx power control: 80 dB SPI programmable bandpass filters SPI controlled interface 40-lead, 6 mm × 6 mm LFCSP package APPLICATIONS Point to point communications Satellite communications W

HMC8100LP6JE General Description

The HMC8100LP6JE is a highly integrated intermediate frequency (IF) receiver chip that converts radio frequency (RF) input signals ranging from 800 MHz to 4000 MHz down to a single-ended intermediate frequency (IF) signal of 140 MHz at its output. The IF receiver chip is housed in a compact 6 mm × 6.

HMC8100LP6JE Datasheet (727.99 KB)

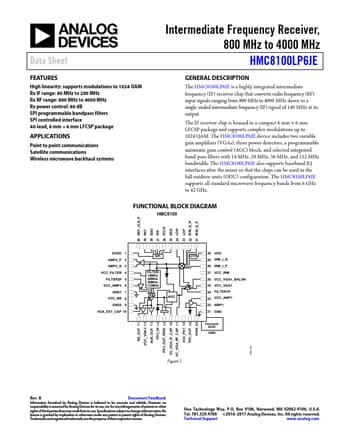

Preview of HMC8100LP6JE PDF

Datasheet Details

Part number:

HMC8100LP6JE

Manufacturer:

Analog Devices ↗

File Size:

727.99 KB

Description:

Intermediate frequency receiver.
