HMC8191CHIPS Datasheet - Analog

MMIC Mixer

HMC8191CHIPS Features

* Passive, wideband, I/Q mixer RF and LO frequency range: 6 GHz to 26.5 GHz Wide IF frequency range: dc to 5 GHz Single-ended RF, LO, and IF Conversion loss: 9.5 dB (typical) Image rejection: 29.5 dBc (typical) Single sideband noise figure: 12 dB (typical) Input IP3: 22 dBm (typical) Input P1dB: 15 dB

HMC8191CHIPS General Description

The HMC8191CHIPS is a passive, wideband, inphase and quadrature (I/Q), monolithic microwave integrated circuit (MMIC) mixer that can be used either as an image rejection mixer for receiver operations or as a single sideband upconverter for transmitter operations. With an RF and local oscillator (LO).

HMC8191CHIPS Datasheet (684.20 KB)

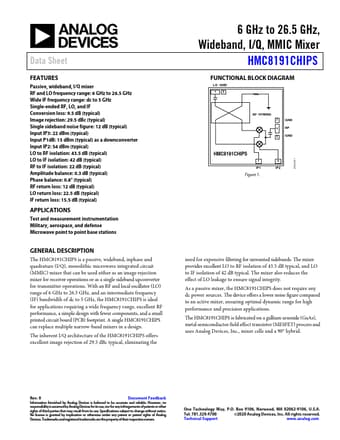

Preview of HMC8191CHIPS PDF

Datasheet Details

Part number:

HMC8191CHIPS

Manufacturer:

Analog

File Size:

684.20 KB

Description:

Mmic mixer.
