HMC8191, 6 GHz to 26 GHz Wideband I/Q Mixer

Data Sheet .
The HMC8191 is a passive, wideband, I/Q monolithic microwave integrated circuit (MMIC) mixer that can be used either as an image reject mixer for rece.

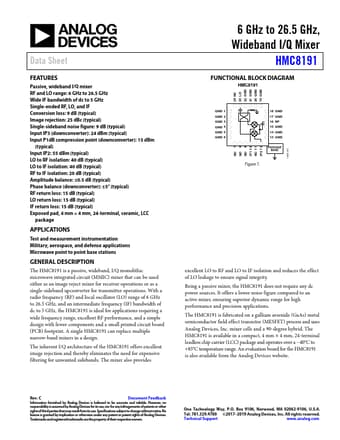

datasheet Preview Page 1 from Datasheet4u.com

HMC8191-AnalogDevices.pdf

HMC8191 Datasheet Preview — Preview of HMC8191 PDF

Datasheet Details

Part number:

HMC8191

Manufacturer:

Analog Devices ↗

File Size:

864.30 KB

Description:

6 GHz to 26 GHz Wideband I/Q Mixer

Features

* Passive, wideband I/Q mixer RF and LO range: 6 GHz to 26.5 GHz Wide IF bandwidth of dc to 5 GHz Single-ended RF, LO, and IF Conversion loss: 9 dB (typical) Image rejection: 25 dBc (typical) Single-sideband noise figure: 9 dB (typical) Input IP3 (downconverter): 24 dBm (typical) Input P1dB compressio
