HMC8193 Datasheet - Analog Devices

2.5 GHz to 8.5 GHz I/Q Mixer

HMC8193 Features

* Passive I/Q mixer RF and LO range: 2.5 GHz to 8.5 GHz Wide IF range: dc to 4 GHz Single-ended RF, LO, and IF Conversion loss (downconverter): 9 dB (typical) Image rejection: 25 dBc (typical) SSB noise figure: 15 dB (typical) Input IP3 (downconverter): 20 dBm (typical) Input P1dB compression point (d

HMC8193 General Description

The HMC8193 is a passive, in phase/quadrature (I/Q), monolithic microwave integrated circuit (MMIC) mixer that can be used either as an imag.

HMC8193 Datasheet (486.40 KB)

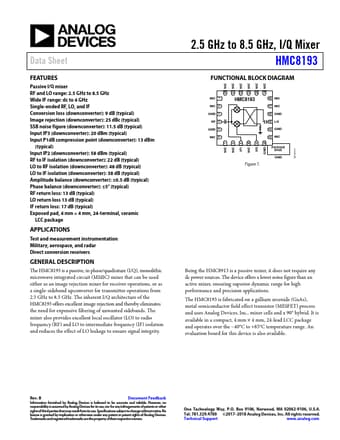

Preview of HMC8193 PDF

Datasheet Details

Part number:

HMC8193

Manufacturer:

Analog Devices ↗

File Size:

486.40 KB

Description:

2.5 ghz to 8.5 ghz i/q mixer.
