HMC812ALC4 Datasheet, Attenuator, Analog Devices

HMC812ALC4 Features

  • Attenuator Wide Bandwidth: 5 - 30 GHz Excellent Linearity: +32 dBm Input IP3 High Power Handling: +25 dBm Input P1dB Wide Attenuation Range: 30 dB 24 Lead Ceramic 4x4 mm SMT Package: 16mm² General

PDF File Details

Part number:

HMC812ALC4

Manufacturer:

Analog Devices ↗

File Size:

953.50kb

Download:

📄 Datasheet

Description:

Gaas mmic voltage-variable attenuator. The HMC812ALC4 is an absorptive Voltage Variable Attenuator (VVA) which operates from 5 - 30 GHz and is ideal in designs where an ana

Datasheet Preview: HMC812ALC4 📥 Download PDF (953.50kb)

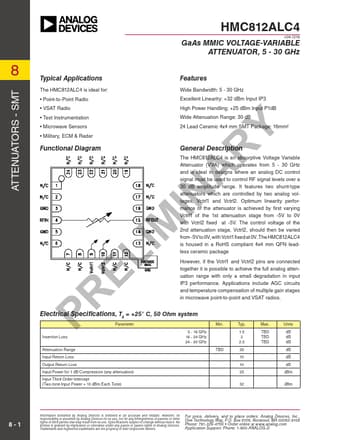

Page 2 of HMC812ALC4 Page 3 of HMC812ALC4

HMC812ALC4 Application

  • Applications The HMC812ALC4 is ideal for:
  • Point-to-Point Radio
  • VSAT Radio
  • Test Instrumentation
  • Microwave Sen
