LT3508 Datasheet - Analog Devices

Dual Monolithic 1.4A Step-Down Switching Regulator

LT3508 Features

* n Wide Input Voltage Range: 3.7V to 36V n Two 1.4A Output Switching Regulators with Internal Power Switches n Adjustable 250kHz to 2.5MHz Switching Frequency n Synchronizable over the Full Frequency Range n Anti-Phase Switching Reduces Ripple n Uses Small Inductors and Ceramic Capacitors n Accurate

LT3508 General Description

The LT®3508 is a dual current mode PWM step-down DC/DC converter with internal power switches capable of generating two 1.4A outputs. The wide input voltage range of 3.7V to 36V makes the LT3508 suitable for regulating power from a wide variety of sources, including automotive batteries, 24V industr.

LT3508 Datasheet (1.19 MB)

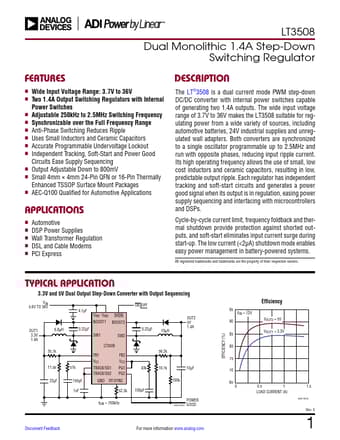

Preview of LT3508 PDF

Datasheet Details

Part number:

LT3508

Manufacturer:

Analog Devices ↗

File Size:

1.19 MB

Description:

Dual monolithic 1.4a step-down switching regulator.
