LT3501

Monolithic Dual Tracking 3A Step-Down Switching Regulator

LT3501 Features

* LT3501 Monolithic Dual Tracking 3A Step-Down Switching Regulator DESCRIPTION The LT®3501 is a dual current mode PWM step-down DC/DC converter with two internal 3.5A switches. Independent input voltage, feedback, soft-start and power good pins for each channel simplify comple

LT3501 General Description

The LT®3501 is a dual current mode PWM step-down DC/DC converter with two internal 3.5A switches. Independent input voltage, feedback, soft-start and power good pins for each channel simplify complex power supply tracking/sequencing requirements. Both converters are synchronized to either a common e.

LT3501 Datasheet (476.34 KB)

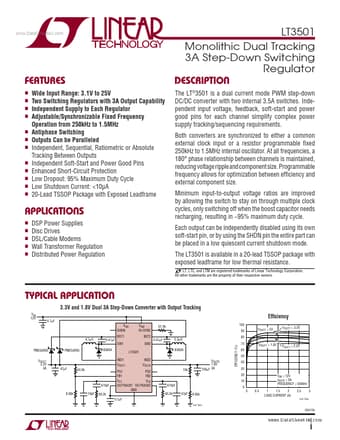

Preview of LT3501 PDF

Datasheet Details

Part number:

LT3501

Manufacturer:

Linear Technology

File Size:

476.34 KB

Description:

Monolithic dual tracking 3a step-down switching regulator.
