LT3514

Triple Step-Down Switching Regulator

LT3514 Features

* n Wide Input Voltage Range: 3.2V to 36V (40V Transient) n Three Outputs: 2A, 1A, 1A n 100% Duty Cycle Operation n Resistor-Programmed Constant Frequency n Short-Circuit Robust n Wide SYNC Range: 350kHz to 2.2MHz n Anti-Phase Switching Reduces Ripple n Feedback Voltage: 800mV n Independent R

LT3514 General Description

The LT®3514 consists of three buck regulators (2A, 1A, 1A output current). The device has a wide operating input range of 3.2V to 36V. An on-chip boost regulator allows each channel to operate up to 100% duty cycle. The LT3514 is designed to minimize external component count and results in a simple .

LT3514 Datasheet (471.08 KB)

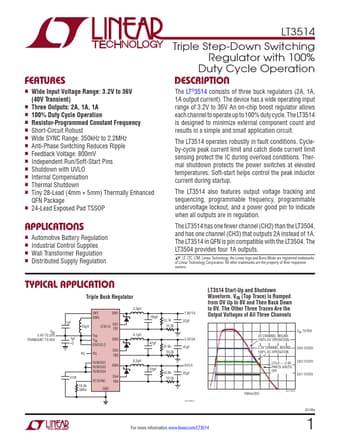

Preview of LT3514 PDF

Datasheet Details

Part number:

LT3514

Manufacturer:

Linear

File Size:

471.08 KB

Description:

Triple step-down switching regulator.
