LT3519-1, LT3519 - LED Driver

LT3519-1 Description

LT3519/LT3519-1/LT3519-2 LED Driver with Integrated Schottky Diode .
The LT®3519/LT3519-1/LT3519-2 are fixed frequency step-up DC/DC converters designed to drive LEDs.

LT3519-1 Features

* n Up to 3000:1 True Color PWM™ Dimming n Wide Input Voltage Range Operation from 3V to 30V Transient Protection to 40V n Rail-to-Rail LED Current Sense from 0V to 45V n 45V, 750mA Internal Switch n Internal Schottky Diode n Constant-Current and Constant-Voltage Regulation n Boost, SEPIC, Buck-Boost

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LT3519-1, LT3519. Please refer to the document for exact specifications by model.

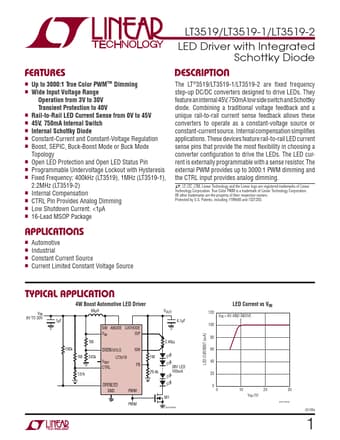

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LT3519-1, LT3519
Manufacturer
Linear
File Size
255.91 KB
Datasheet
LT3519_LinearTechnology.pdf
Description
LED Driver
Note
This datasheet PDF includes multiple part numbers: LT3519-1, LT3519.
Please refer to the document for exact specifications by model.
