LT3519-2 - LED Driver

Product Overview

Linear

Part number	LT3519-2
Manufacturer	Linear
File Size	255.91 KB
Description	LED Driver
Datasheet	LT3519-2 Datasheet
Note	This datasheet PDF includes multiple part numbers: LT3519-2, LT3519. Please refer to the document for exact specifications by model.

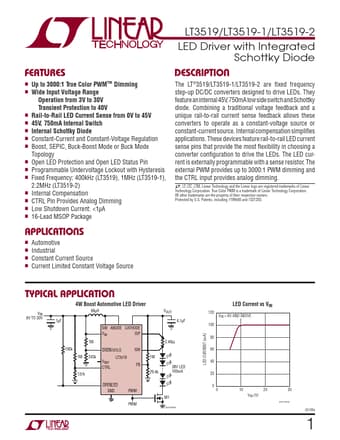

Additional preview pages of the LT3519-2 datasheet.

The LT®3519/LT3519-1/LT3519-2 are ﬁxed frequency step-up DC/DC converters designed to drive LEDs.

n Up to 3000:1 True Color PWM™ Dimming n Wide Input Voltage Range Operation from 3V to 30V Transient Protection to 40V n Rail-to-Rail LED Current Sense from 0V to 45V n 45V, 750mA Internal Switch n Internal Schottky Diode n Constant-Current and Constant-Voltage Regulation n Boost, SEPIC, Buck-Boost Mode or Buck Mode Topology n Open LED Protection and Open LED Status Pin n Programmable Undervoltage Lockout with Hysteresis n Fixed Frequency: 400kHz (LT3519), 1MHz (LT3519-1), 2.2MHz (LT3519-2) n In.
