LT3517 - Full-Featured LED Driver

Product Overview

Linear Technology

📥 Download Datasheet

LT3517 Full-Featured LED Driver by Linear Technology - Datasheet Preview — Datasheet preview – LT3517

Datasheet Details

Part number	LT3517
Manufacturer	Linear Technology
File Size	319.79 KB
Description	Full-Featured LED Driver
Datasheet	LT3517 Datasheet
Additional preview pages of the LT3517 datasheet.

Product details

Description

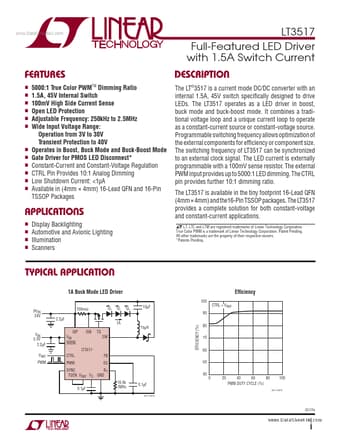

The LT®3517 is a current mode DC/DC converter with an internal 1.5A, 45V switch speciﬁcally designed to drive LEDs.

Features

5000:1 True Color PWMTM Dimming Ratio 1.5A, 45V Internal Switch 100mV High Side Current Sense Open LED Protection Adjustable Frequency: 250kHz to 2.5MHz Wide Input Voltage Range: Operation from 3V to 30V Transient Protection to 40V Operates in Boost, Buck Mode and Buck-Boost Mode Gate Driver for PMOS LED Disconnect.
Constant-Current and Constant-Voltage Regulation CTRL Pin Provides 10:1 Analog Dimming Low Shutdown Curr.
