LTC2323-12 - 5Msps Differential Input ADC

Product Overview

📥 Download Datasheet

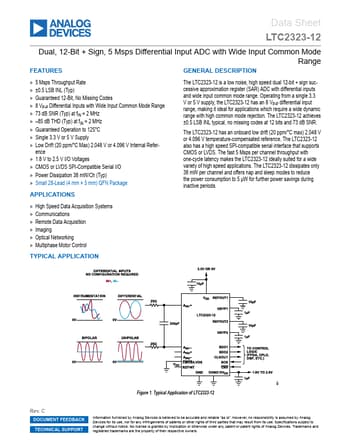

Datasheet preview – LTC2323-12

Datasheet Details

Part number LTC2323-12
Manufacturer Analog Devices
File Size 1.93 MB
Description 5Msps Differential Input ADC
Datasheet download datasheet LTC2323-12 Datasheet
Additional preview pages of the LTC2323-12 datasheet.

Product details

Description

5 Msps Throughput Rate ±0.5 LSB INL (Typ) Guaranteed 12-Bit, No Missing Codes 8 VP-P Differential Inputs with Wide Input Common Mode Range 73 dB SNR (Typ) at fIN = 2 MHz 85 dB THD (Typ) at fIN = 2 MHz Guaranteed Operation to 125°C Single 3.3 V or 5 V Supply Low Drift (20 ppm/°C Max) 2.048 V or 4.096 V Internal Refer- ence 1.8 V to 2.5 V I/O Voltages CMOS or LVDS SPI-Compatible Serial I/O Power Dissipation 38 mW/Ch
