LTC2320-14

1.5Msps/Ch Simultaneous Sampling ADC

LTC2320-14 Features

* nn 1.5Msps/Ch Throughput Rate nn Eight Simultaneously Sampling Channels nn Guaranteed 14-Bit, No Missing Codes nn 8VP-P Differential Inputs with Wide Input Common Mode Range nn 81dB SNR (Typ) at fIN = 500kHz nn

* 90dB THD (Typ) at fIN = 500kHz nn Guaranteed Operation to 125°C nn Single 3.3V o

LTC2320-14 General Description

The LTC®2320-14 is a low noise, high speed octal 14‑bit + sign successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC232014 has an 8VP-P differential input range, making it ideal for applications which.

LTC2320-14 Datasheet (2.05 MB)

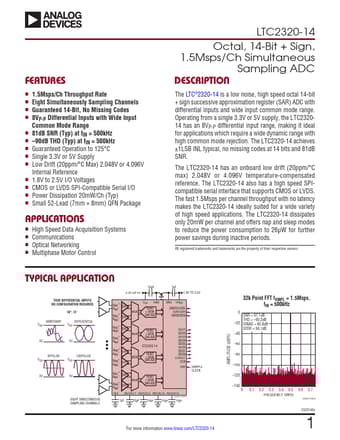

Preview of LTC2320-14 PDF
