LTC2323-16

Differential Input ADC

LTC2323-16 Features

* LTC2323-16 Dual, 16-Bit, 5Msps Differential Input ADC with Wide Input Common Mode Range DESCRIPTION n 5Msps Throughput Rate n ±4LSB INL (Typ) n Guaranteed 16-Bit, No Missing Codes n 8VP-P Differential Inputs with Wide Input Common Mode Range n 81dB SNR (Typ) at fIN = 2MHz n

* 85dB THD

LTC2323-16 General Description

n 5Msps Throughput Rate n ±4LSB INL (Typ) n Guaranteed 16-Bit, No Missing Codes n 8VP-P Differential Inputs with Wide Input Common Mode Range n 81dB SNR (Typ) at fIN = 2MHz n

*85dB THD (Typ) at fIN = 2MHz n Guaranteed Operation to 125°C n Single 3.3V or 5V Supply n Low Drift (20ppm.

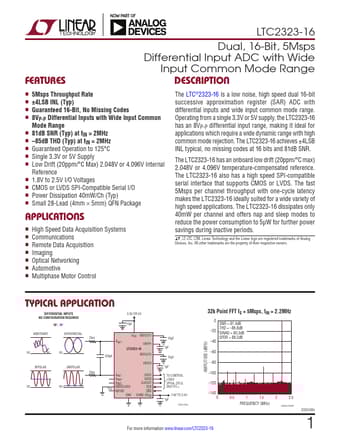

LTC2323-16 Datasheet (1.28 MB)

Preview of LTC2323-16 PDF

Datasheet Details

Part number:

LTC2323-16

Manufacturer:

Linear Technology

File Size:

1.28 MB

Description:

Differential input adc.
