LTC2688 12-/16-Bit Voltage Output SoftSpan DAC

The LTC2688 is a 16-channel,12-/16-bit, ±15 V digital-to-analog converter (DAC) with an integrated precision reference. The LTC2688 is guaranteed monotonic and has built in rail-to-rail output buffers that can source or sink up to 20 mA. This SoftSpan™ DAC offers five output ranges up to ±15 V. The .

LTC2688 Features

* 16 independent SoftSpan DAC channels

* Independently programmable output ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, ±10 V, ±15 V

* Full 12-/16-bit resolution at all ranges

* Flexible single- or dual-supply operation

* Maximum INL error: ±3 LSB16, ±0.75 LSB12

* Precision 4.096 V

LTC2688-AnalogDevices.pdf

Preview of LTC2688 PDF

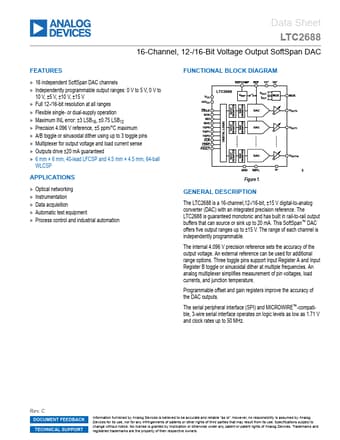

LTC2688 Datasheet Preview Page 2 LTC2688 Datasheet Preview Page 3

Datasheet Details

Part number:

LTC2688

Manufacturer:

Analog Devices ↗

File Size:

2.62 MB

Description:

12-/16-bit voltage output softspan dac.
