LTC5594 - 300MHz to 9GHz High Linearity I/Q Demodulator

Product Overview

Analog Devices

Datasheet Details

Part number	LTC5594
Manufacturer	Analog Devices
File Size	4.51 MB
Description	300MHz to 9GHz High Linearity I/Q Demodulator
Datasheet	LTC5594 Datasheet

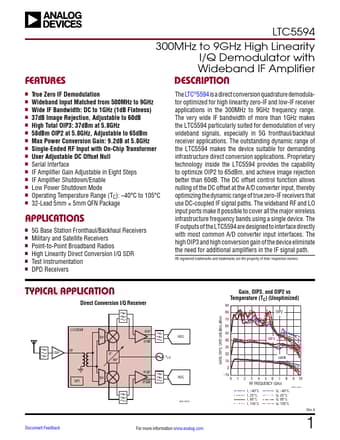

Additional preview pages of the LTC5594 datasheet.

Product details

Description

nn True Zero IF Demodulation nn Wideband Input Matched from 500MHz to 9GHz nn Wide IF Bandwidth: DC to 1GHz (1dB Flatness) nn 37dB Image Rejection, Adjustable to 60dB nn High Total OIP3: 37dBm at 5.8GHz nn 58dBm OIP2 at 5.8GHz, Adjustable to 65dBm nn Max Power Conversion Gain: 9.2dB at 5.8GHz nn Single-Ended RF Input with On-Chip Transformer nn User Adjustable DC Offset Null nn Serial Interface nn IF Amplifier Gain Adjustable in Eight Steps nn IF Amplifier Shutdown/Enable nn Low Power Shutdown

Features

300MHz to 9GHz High Linearity I/Q Demodulator with Wideband IF Amplifier.
