LTC5556 Datasheet, Mixer, Analog Devices

LTC5556 Features

• Mixer nn 9dB Power Conversion Gain nn 32dBm Output IP3 nn 15.5dB Range IF DVGA in 0.5dB Steps nn IF Frequency Range Up to 900MHz nn Reduced Power Mode nn 3.3V Single Supply nn Simple SPI for

PDF File Details

Part number:

LTC5556

Manufacturer:

Analog Devices ↗

File Size:

3.42MB

Download:

📄 Datasheet

Description:

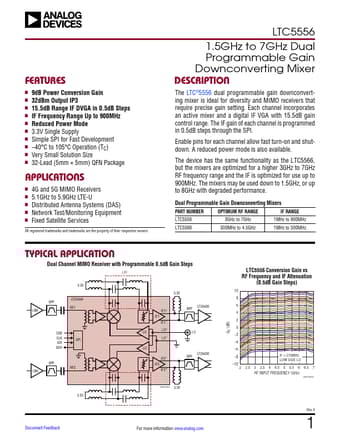

Dual programmable gain downconverting mixer. The LTC®5556 dual programmable gain downconverting mixer is ideal for diversity and MIMO receivers that require precise gain setting.

LTC5556 Application

• Applications nn 4G and 5G MIMO Receivers nn 5.1GHz to 5.9GHz LTE-U nn Distributed Antenna Systems (DAS) nn Network Test/Monitoring Equipment nn Fixe
