LTC7000-1 Datasheet, Driver, Analog Devices

LTC7000-1 Features

• Driver n Wide Operating VIN: 3.5V to 135V (150V Abs Max) n 1Ω Pull-Down, 2.2Ω Pull-Up for Fast Turn-On and Turn-Off Times with 35ns Propagation Delays n Internal Charge Pump for 100% Duty Cycl

PDF File Details

Part number:

LTC7000-1

Manufacturer:

Analog Devices ↗

File Size:

2.52MB

Download:

📄 Datasheet

Description:

High side nmos static switch driver. The LTC®7000/LTC7000-1 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 135V. It contains an

LTC7000-1 Application

• Applications APPLICATIONS n Static Switch Driver n Load and Supply Switch Driver n Electronic Valve Driver n High Frequency High Side Gate Driver D

TAGS

LTC7000-1

Analog Devices

📁 Related Datasheet

LTC7000-1 - Fast 150V Protected High Side NMOS Static Switch Driver (Linear)

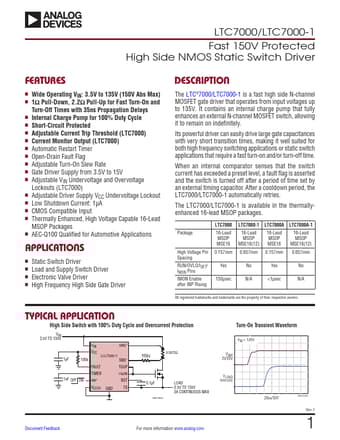

LTC7000/LTC7000-1 Fast 150V Protected High Side NMOS Static Switch Driver FEATURES n Wide Operating VIN: 3.5V to 135V (150V Abs Max) n 1Ω Pull-Down, .
