MAX22165

The MAX22165 is 6-Channel Digital Isolators designed by Analog Devices.

Product Overview

Analog Devices

Datasheet Details

Part number	MAX22165, MAX22163
Manufacturer	Analog Devices
File Size	2.07 MB
Description	6-Channel Digital Isolators
Datasheet	MAX22163-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: MAX22165, MAX22163. Please refer to the document for exact specifications by model.
Additional preview pages of the MAX22165 datasheet.

Product details

Description

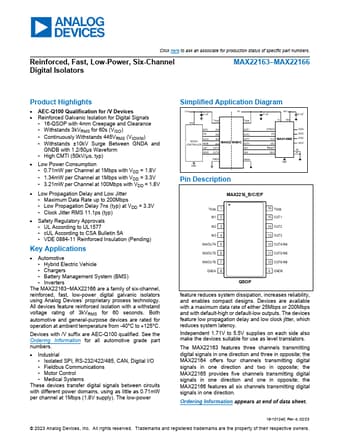

MAX2216_B/C/E/F + VDDA 1 IN1 2 IN2 3 IN3 4 IN4/OUT4 5 IN5/OUT5 6 IN6/OUT6 7 GNDA 8 16 VDDB 15 OUT1 14 OUT2 13 OUT3 12 OUT4/ IN4 11 OUT5/ IN5 10 OUT6/ IN6 9 GNDB QSOP feature reduces system dissipation, increases reliability, and enables compact designs.Devices are available with a maximum data rate of either 25Mbps or 200Mbps and with default-high or default-low outputs.The devices feature low propagation delay and low clock jitter, which reduces system latency.Independent 1.71V to 5.5V

Features

three channels transmitting digital signals in one direction and three in opposite; the MAX22164 offers four channels transmitting digital signals in one direction and two in opposite; the MAX22165 provides five channels transmitting digital signals in one direction and one in opposite; the MAX22166 features all six channels transmitting digital signals in one direction. Ordering Information appears at end of data sheet. 19-101240; Rev 4; 02/23 © 2023 Analog Devices, Inc. All rights reserved. T.
