MAX22166, MAX22163 6-Channel Digital Isolators

MAX22166 Description

Click here to ask an associate for production status of specific part numbers.Reinforced, Fast, Low-Power, Six-Channel Digital Isolators MAX22163 MAX2216_B/C/E/F + VDDA 1 IN1 2 IN2 3 IN3 4 IN4/OUT4 5 IN5/OUT5 6 IN6/OUT6 7 GNDA 8 16 VDDB 15 OUT1 14 OUT2 13 OUT3 12 OUT4/ IN4 11 OUT5/ IN5 10 OUT.

MAX22166 Features

* three channels transmitting digital signals in one direction and three in opposite; the MAX22164 offers four channels transmitting digital signals in one direction and two in opposite; the MAX22165 provides five channels transmitting digital signals in one direction and one in opposite; the MAX22166

MAX22166 Applications

* Automotive
* Hybrid Electric Vehicle
* Chargers
* Battery Management System (BMS)
* Inverters The MAX22163
* MAX22166 are a family of six-channel, reinforced, fast, low-power digital galvanic isolators using Analog Devices’ proprietary process technolo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX22166, MAX22163. Please refer to the document for exact specifications by model.

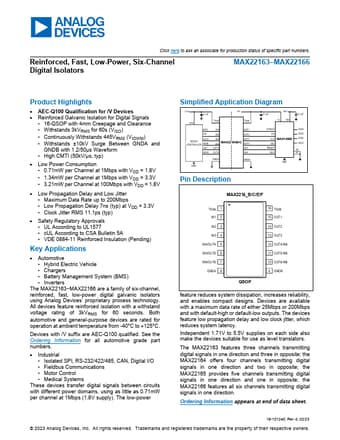

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX22166, MAX22163
Manufacturer
Analog Devices ↗
File Size
2.07 MB
Datasheet
MAX22163-AnalogDevices.pdf
Description
6-Channel Digital Isolators
Note
This datasheet PDF includes multiple part numbers: MAX22166, MAX22163.
Please refer to the document for exact specifications by model.
